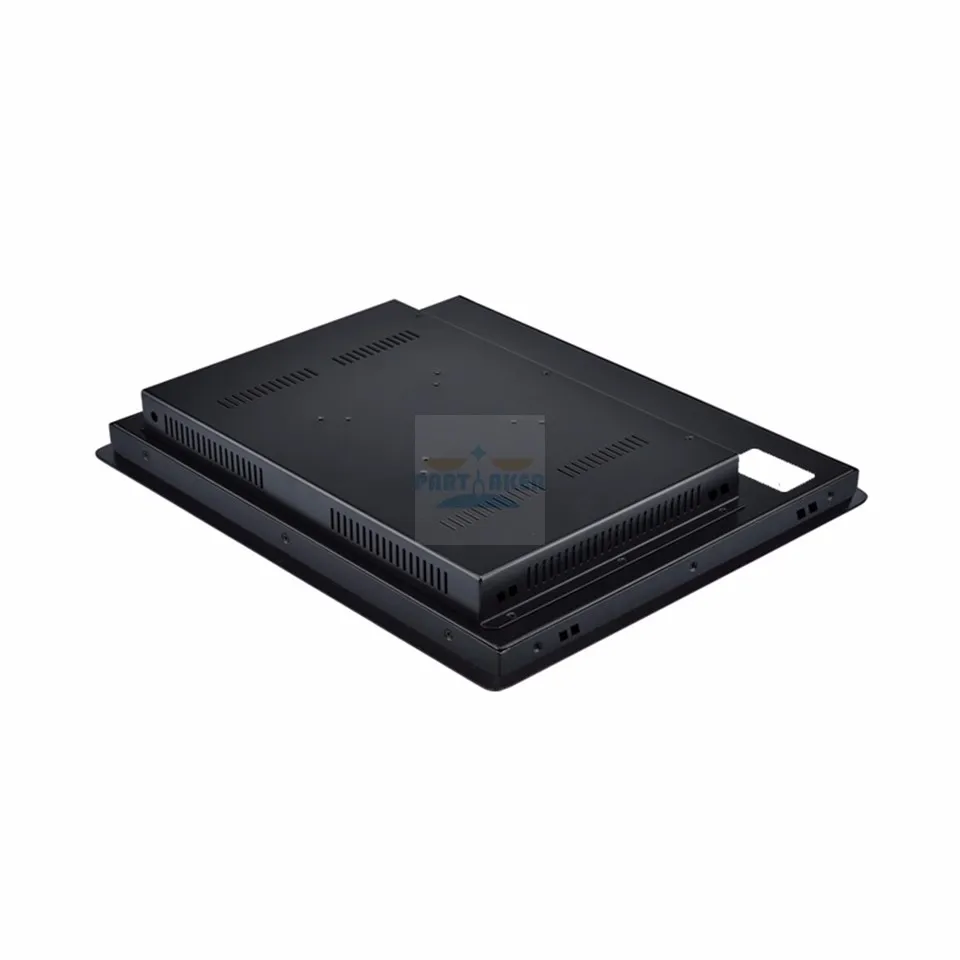

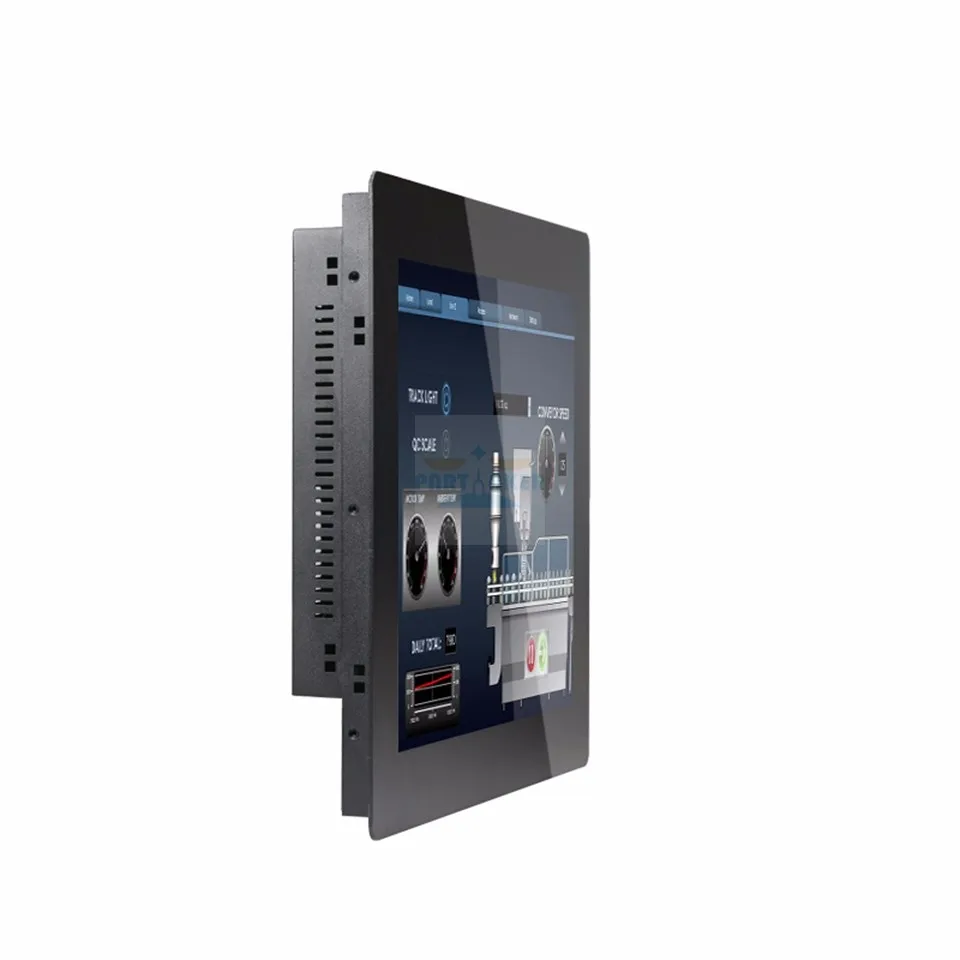

Touch Screen All In One PC With 19 Inch 2MM Panel Intel Core I7 3537U Made-In-China 5 Wire Resistive Touch Screen

৳ 50,461.06৳ 55,191.78 (-7%)

748 in stock

2GB Ram 32GB SSD4GB Ram 128GB SSD8GB Ram 256GB SSD
AUEUJPUKUS
Clear
Compare
SKU: 32847050017 Categories: ,

Model Number:

Partaker Elite Z16T

Screen Size:

19 Inch

Front Panel:

2MM Ultra Thin

Opening Hole Size:

435*359mm (Length*Width)

Screen Type:

Made-In-China 5 Wire Resistive Touch Screen

CPU:

Intel Core I7 3537U Dual Core to 3.1Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

4*USB2.0/2*RS232

I/O:

1*VGA/1*HDMI/1*RJ45 (Dual RJ45 Optional, contact us for it)

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

452.5*376.5*59.5(mm)

Gross Weight:

12 KGS

Opening Hole Size Drawing:

Features:

Front panel only 2mm, embedded design

Stable performance, support 7 * 24-hour uninterrupted operation

Interface rich and complete, support OEM/ODM customization

Optional WiFi module, support for 802.11b / g / n

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….

Panel Structure:

Panel Size

19 Inch LED Screen

Resolution

1280*1024

Display Brightness

250cd/m(2)

Contrast

1000 : 1

Response Time

5ms

Touch Type

Using high-quality resistance touch screen click life> 1 million times

Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS,HDMI+LVDS Synchronous / Asynchronous Dual Display

Motherboard: Fan Design

I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core

There is without LPT port by default,if you need it,please contact us before buy!

This link for Z16T CPU i7 3537U Made-In-China Touch Screen Type Only, if need other type, please check below upgrade cost.
Upgrade to Taiwan High Temperature 5 Wire Touch Screen, Add extra $30 Only.
Upgrade to 10 Points Capacitive Touch Screen, Add extra $60 Only.
Upgrade service
How to upgrade?
1. Click Upgrade Link
2. For example, you need Made-In-China 4GB 64GB, the price is $755-$720=$35
3. Upgrade value, 1pc=$1
4. So you can buy 35pcs $1, and leave message for the configuration you need, Done.
5. You can upgrade TaiWan High 5 Wire and 10 Points Capactive Screen as you liked, just pay the extra difference and leave us message which one you upgraded when placed order.
Model Number: Partaker Z16T
Screen Size: 19 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 435*359mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Core I7
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 452.5*376.5*59.5(mm)
Gross Weight: 11.5 KGS
Panel Structure:
Panel Size: 19 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 47.5CM(L)*43.5CM(W)*15CM(H)
Physical Weight: 6.25KG / 7.5KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz  Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set

1. According Newest Aliexpress Business Service Agreement informs all products should be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation. Any request, leave us message.
3. According to customs rules in Russia, we have to write real price to customs.and buyer have to offer passport information, personal VAT number and link of product to local customs for clearance. Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018. Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018. The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros, Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27, local time.You have to pay it within 30 days, otherwise the package will be returned or destroyed. For that, we wont do money refund.
7. To European union(28 counties) we have XINNUO or YUNTU shipping which will pre-paid taxes in our side which means no need pay taxes when goods received, the delivery time need 8-15 days to GB, France, Italy, Spain, Germany etc.Contact us if you need this service.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address, zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany.
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to choose EMS or DHL , more faster and safe .
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide 1-3 year warranty period, repair or replace for free; the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down, please contact us.
1. We maintain high standards of excellence and strive for 100% customer satisfaction!
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, please contact us first, we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less.

Additional information

Brand Name

Partaker

Port

LAN

Hard Drive Capacity

32G SSD

Weight

11KG

Memory Capacity

32 MB

Model Number

Elite Z16T

Processor Model Number

Intel Core I7 Dual Core to 2.8Ghz

Graphics Card Chipset

HD Graphics

Type

All-In-One

HDD Rotation Speed

SSD

Display Size

19"

Processor Series

Intel Core i7

Mouse & Keyboard

No

Processor Main Frequency

2.4

Graphics Card Type

Integrated Card

Dispaly Ratio

4:3

Drive Type

No CD ROM

Processor Core

Dual Core

RAM Type

DDR3

Display Type

Touch Screen

RAM

2G RAM

SSD

32G SSD

Operating System

Windows 7

Graphics Type

Integrated graphics

Products Status

Stock

CPU

Intel Core I7 Dual Core to 2.8Ghz

Touch Screen

Made-In-China 5 Wire Resistive Touch Screen

Display resolution

1280*1024

Ports

2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out

Physical Dimension

452.5*376.5*59.5(mm)
